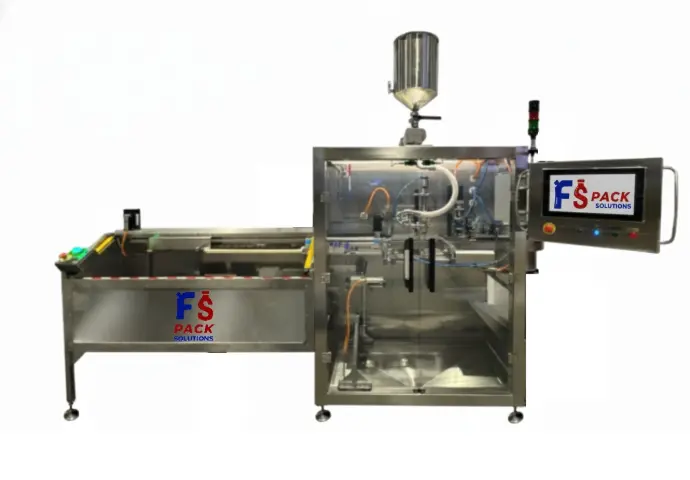

NeoFill Expert

 Remplissage de poche et gourdes par le bouchon







Caractéristiques



Liquides, semi-visqueux et moussants (compotes, sauces, gels, shampooings, détergents).

De 60ml à 5L. Requière ou non des pièces de format

Cadence de 30ppm en 200ml à 12ppm en 5L selon viscosité produit, diamètre de bouchon...

Non, la fermeture se fait par vissage du bouchon livré à part.

Oui, options de nettoyage et stérilisation en place selon configuration.

Oui, avec intégration de magasin automatique en amont et convoyeurs et mise en carton en fin de ligne.


Performances & configurations

Specifications Details
Filling heads - Nb de têtes1 / 2
Speed - CadenceMax 30 ppm (ddepends on format, spout, viscosity, product)
Pouch style - Types de pochesDoypack, 2/3 side seal, side-gusset
Spout position - Position du becTop center / corner
Filling capacity - Volume de remplissage60 ml -> 3 L
Filled products - Produits compatiblesLiquids, High Viscosity, foaming (moussant)
Materials - MatériauxInox 304/316
Cleaning - NettoyageCIP/SIP, surfaces easy-clean
Dosing systems - Pompes compatiblesLobe, péristaltique, Gear (engrenage), piston
Power - Air / électricité6B - 400V tri
DimensionsSee Layout

Performances depends on configuration & product



NeoFill Expert

Vers NeoFill Pilot

Layout

Our experience with the NeoFill Expert (formerly FC1) installed at INA MAZIVA has been very positive. The project was well‑organized, with clear technical guidance, timely communication and professional coordination from the supplier’s side. The filler demonstrates solid build quality, user‑friendly ergonomics and consistent dosing accuracy, which supports the quality requirements of our products.

Support during installation and commissioning was efficient, with good responsiveness to all technical questions and on‑site needs. In regular production, the machine operates reliably, showing stable performance, repeatability and a positive impact on process efficiency. Based on our experience, the NeoFill Expert has proven to be a robust and dependable solution for pouch filling applications.

INA MAZIVA
